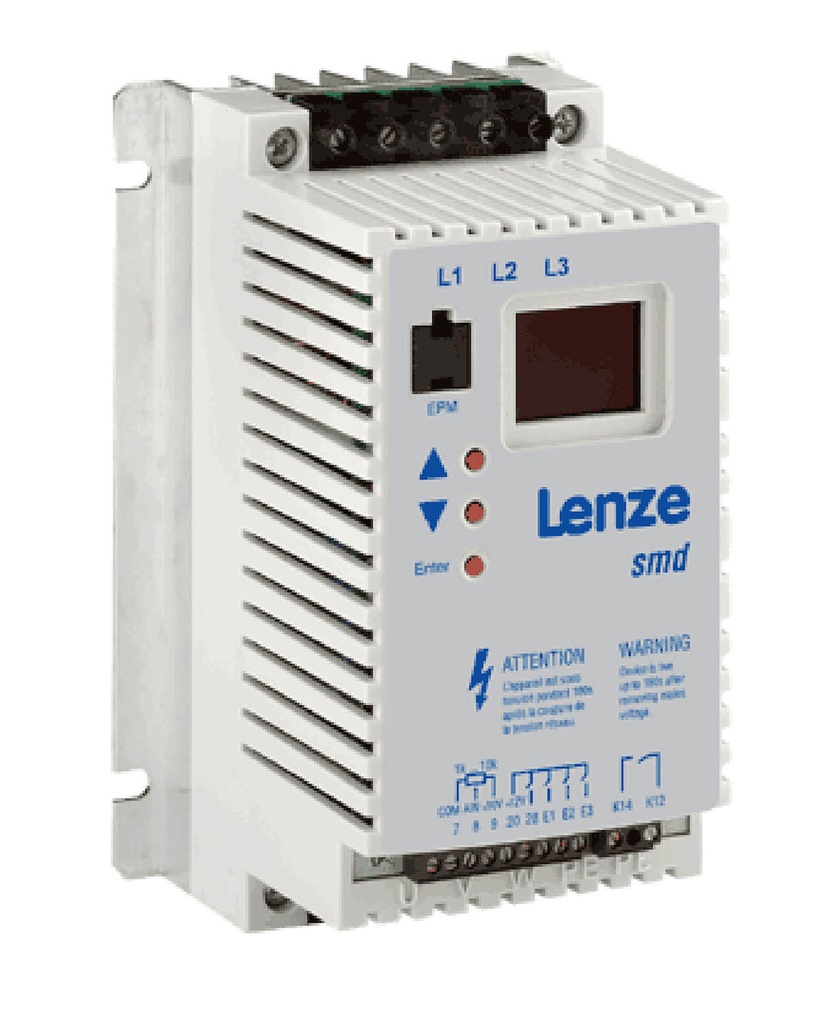

Variador de Frecuencia Lenze (0.5 HP, 220 V)

VARIADOR DE FRECUENCIA LENZE ESMD

– Ingeniería alemana Lenze.
Fabricados en USA para máxima confiabilidad.
Control preciso de velocidad con alto nivel de estabilidad.
Diseñados para automatización y aplicaciones industriales exigentes.

The Lenze SMD AC drive provides advanced technology and high quality, at a reasonable price, and features everything you would expect from a modern AC inverter suitable for universal use.

Power: 0,5 HP (0,4 kW)
Amps: 5 A
Supply: _PHASES_ 220 V
Model: ESMD551X2SFA
Filter: Built-In
Performance: Basic
Weight: 0,8 kg
Torque: Constant Torque General Purpose

The Lenze SMD AC drive frequency inverter has three easy to use on-board functions and small number of parameters makes commissioning the Lenze SMD AC drive very easy. The parameter setting on the Lenze SMD AC drive can be saved on a unique EPM (Electronic Programmable Module) chip. The EPM is a plug-in memory chip which has been specifically designed for the Lenze SMD AC drive. With the EPM, drive data only needs to be configured once and can then be transferred to other SMD frequency inverters in the range. The programmer can save up to 30 different drive programs as files. Copying data from EPM to EPM, file to EPM or rewriting the EPM to a file takes just two seconds at the touch of a button.

Start / stop functions
Analog set-point selection with voltage or current
Freely programmable inputs
Freely programmable relay output

The Lenze SMD AC Drive frequency inverter features current limitation with frequency reduction for stable operation, a highly visible LED display and the option of low-noise operation by means of an adjustable switching frequency up to 10kHz.

Climatic Condition - Class 3K3 to EN 50178
Temperature Range - Storage: -20°C to +70°C
Operation - 0 °C to + 55 °C (with power de-rating of 2.5 % per 1 °C above 40 °C)
Installation Height - 0 to 4000m AMSL (with power de-rating of 5% per 1000 m above 1000m AMSL)
Ambient Humidity - < 95 % (no condensation)
Vibration Resistance - Acceleration stability up to 0.7 g to EN 5178
Enclosure - IP20 to EN 60529
